IAP Hub Assembly
Select Your Vehicle
DuraGo® has a rich history in manufacturing aftermarket automotive products. The company was founded over 45 years ago and through the years has developed a diverse product offering. The DuraGo® Wheel Hub Program is the professional's choice for quality. We take pride in our attention to detail and our reputation for outstanding reliability. DuraGo® products are manufactured by ISO certified factories to meet requirements of fit, form and function.
- Generation 1 Wheel Hub forged from high grade steel
- Generation 1 Wheel Hub forged from high grade steel providing long lasting performance. Studs preinstalled where applicable. Bearing (not included) presses onto hub.

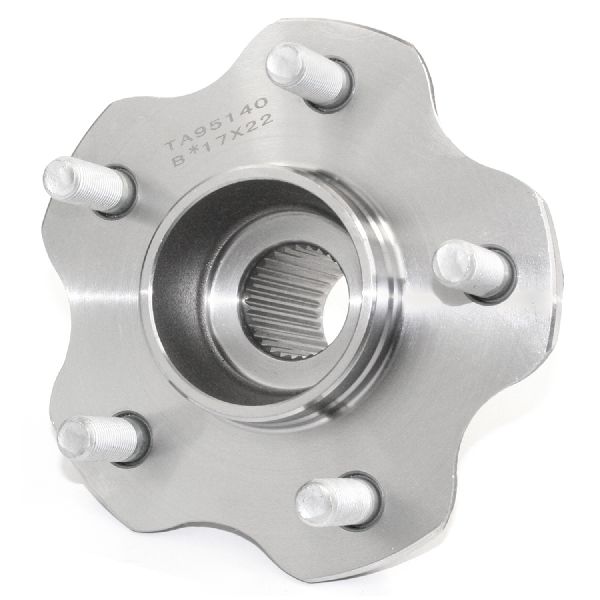

P311-3D7577F 295-95140 IAP Hub Assembly New
| Vehicle | Drive Type | Position |
|---|---|---|
| 2003 INFINITI G35 | RWD | Rear |
- Bolt Circle Diameter:
- 114.3
- 4.5
- Brake Pilot Diameter:
- 2.68
- 68
- Flange Diameter:
- 149
- 5.87
- Hub Pilot Diameter:
- 1.69
- 43
- Spline Quantity: 29
- Wheel Pilot Diameter:
- 2.6
- 66
- Wheel Stud Quantity: 5
- Wheel Stud Size: M12 X 1.25
- Wheel Studs Included: Yes
- Heat treated and tempered; Forged Flange
- Each Hub Assembly is individually heat treated utilizing the latest digital machinery. Forged flange: Provides precise vehicle fit. Maintenance free unitized design- Pre-Set, Pre-Greased, and Pre-Sealed.

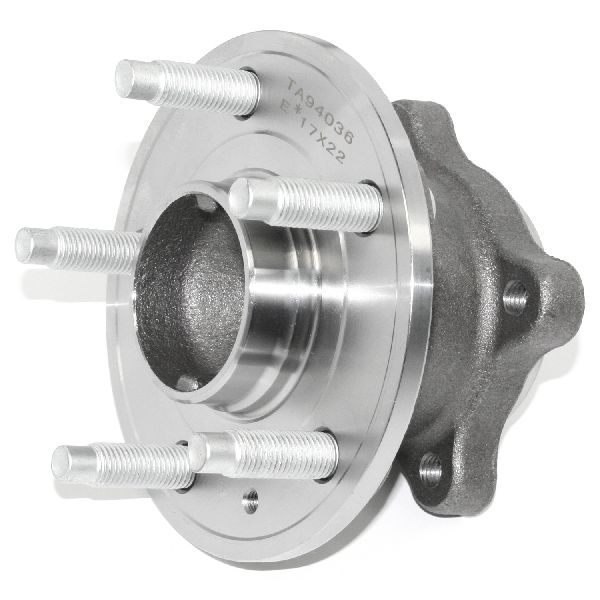

P311-4EF4203 295-94036 IAP Hub Assembly New
| Vehicle | Position |
|---|---|
| 2013 Chevrolet Sonic | Rear |
- Anti Lock Braking System: Yes
- Anti Lock Braking System Type: Encoder
- Bolt Circle Diameter:
- 105
- 4.13
- Brake Pilot Diameter:
- 2.36
- 60
- Driven Or Non-Driven Type Hub Assembly: Non-driven
- Flange Bolt Hole Quantity: 4
- Flange Bolt Size: M10 X 1.5
- Flange Bolts Included: No
- Flange Diameter:
- 136
- 5.35
- Flange Offset:
- 2.55
- 64.7
- Flange Shape: Rectangle
- Hub Pilot Diameter:
- 2.76
- 70
- Wheel Pilot Diameter:
- 2.22
- 56.5
- Wheel Stud Quantity: 5
- Wheel Stud Size: M12 X 1.5
- Wheel Studs Included: Yes
- Heat treated and tempered; Forged Flange
- with Plastic Sensor Wire Clip (Axle Nut Torque 159 ft. lbs)
- Each Hub Assembly is individually heat treated utilizing the latest digital machinery. Forged flange: Provides precise vehicle fit. Maintenance free unitized design- Pre-Set, Pre-Greased, and Pre-Sealed.

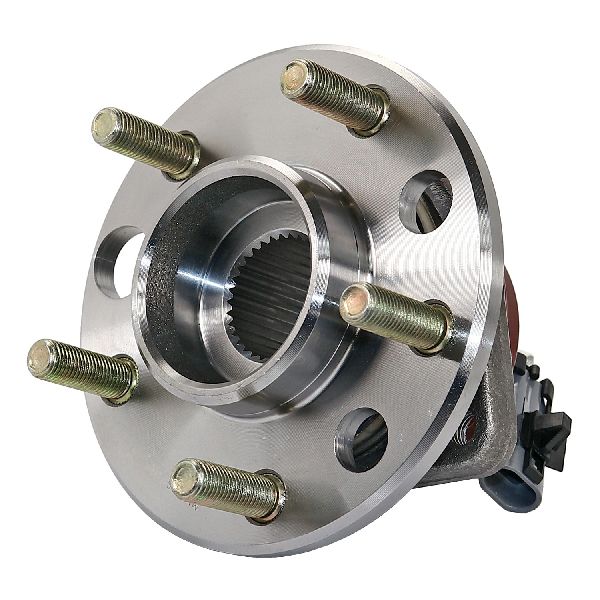

P311-5774ACD 295-13179 IAP Hub Assembly New
| Vehicle | Position |
|---|---|
| 2001 Buick Century | Front |
- ABS Wheel Speed Sensor Cable Included: Yes
- Anti Lock Braking System: Yes
- Anti Lock Braking System Type: Sensor
- Bolt Circle Diameter:
- 115
- 4.53
- Brake Pilot Diameter:
- 2.78
- 70.6
- Connector Quantity: 1
- Driven Or Non-Driven Type Hub Assembly: Driven
- Flange Bolt Hole Quantity: 3
- Flange Bolt Size: M12 X 1.75
- Flange Bolts Included: No
- Flange Diameter:
- 145.5
- 5.73
- Flange Offset:
- 1.66
- 42.1
- Flange Shape: Triangle
- Hub Pilot Diameter:
- 3.6
- 91.4
- Spline Quantity: 33
- Wheel Pilot Diameter:
- 2.76
- 70.1
- Wheel Stud Quantity: 5
- Wheel Stud Size: M12 X 1.5
- Wheel Studs Included: Yes
- Heat treated and tempered; Forged Flange
- with ABS (Axle Nut Torque 159 ft. lbs)
- Each Hub Assembly is individually heat treated utilizing the latest digital machinery. Forged flange: Provides precise vehicle fit. Maintenance free unitized design- Pre-Set, Pre-Greased, and Pre-Sealed.
P311-5774ACD 295-13179 IAP Hub Assembly New
| Vehicle | BrakeABS | Brakes | Front Brake | Rear Brake | Position |
|---|---|---|---|---|---|
| 2004 Buick Century | 4-Wheel ABS | Power | Disc | Disc | Front |
- ABS Wheel Speed Sensor Cable Included: Yes
- Anti Lock Braking System: Yes
- Anti Lock Braking System Type: Sensor
- Bolt Circle Diameter:
- 115
- 4.53
- Brake Pilot Diameter:
- 2.78
- 70.6
- Connector Quantity: 1
- Driven Or Non-Driven Type Hub Assembly: Driven
- Flange Bolt Hole Quantity: 3
- Flange Bolt Size: M12 X 1.75
- Flange Bolts Included: No
- Flange Diameter:
- 145.5
- 5.73
- Flange Offset:
- 1.66
- 42.1
- Flange Shape: Triangle
- Hub Pilot Diameter:
- 3.6
- 91.4
- Spline Quantity: 33
- Wheel Pilot Diameter:
- 2.76
- 70.1
- Wheel Stud Quantity: 5
- Wheel Stud Size: M12 X 1.5
- Wheel Studs Included: Yes
- Heat treated and tempered; Forged Flange
- with Plastic Sensor Wire Clip (Axle Nut Torque 118 ft. lbs)
- Each Hub Assembly is individually heat treated utilizing the latest digital machinery. Forged flange: Provides precise vehicle fit. Maintenance free unitized design- Pre-Set, Pre-Greased, and Pre-Sealed.
P311-5774ACD 295-13179 IAP Hub Assembly New
| Vehicle | Position |
|---|---|
| 2002 Buick LeSabre | Front |
- ABS Wheel Speed Sensor Cable Included: Yes
- Anti Lock Braking System: Yes
- Anti Lock Braking System Type: Sensor
- Bolt Circle Diameter:
- 115
- 4.53
- Brake Pilot Diameter:
- 2.78
- 70.6
- Connector Quantity: 1
- Driven Or Non-Driven Type Hub Assembly: Driven
- Flange Bolt Hole Quantity: 3
- Flange Bolt Size: M12 X 1.75
- Flange Bolts Included: No
- Flange Diameter:
- 145.5
- 5.73
- Flange Offset:
- 1.66
- 42.1
- Flange Shape: Triangle
- Hub Pilot Diameter:
- 3.6
- 91.4
- Spline Quantity: 33
- Wheel Pilot Diameter:
- 2.76
- 70.1
- Wheel Stud Quantity: 5
- Wheel Stud Size: M12 X 1.5
- Wheel Studs Included: Yes
- Heat treated and tempered; Forged Flange
- 2nd Design; Plastic Sensor Wire Clip
- Each Hub Assembly is individually heat treated utilizing the latest digital machinery. Forged flange: Provides precise vehicle fit. Maintenance free unitized design- Pre-Set, Pre-Greased, and Pre-Sealed.
P311-5774ACD 295-13179 IAP Hub Assembly New
| Vehicle | Position |
|---|---|
| 2000 Chevrolet Monte Carlo | Front |
- ABS Wheel Speed Sensor Cable Included: Yes
- Anti Lock Braking System: Yes
- Anti Lock Braking System Type: Sensor
- Bolt Circle Diameter:
- 115
- 4.53
- Brake Pilot Diameter:
- 2.78
- 70.6
- Connector Quantity: 1
- Driven Or Non-Driven Type Hub Assembly: Driven
- Flange Bolt Hole Quantity: 3
- Flange Bolt Size: M12 X 1.75
- Flange Bolts Included: No
- Flange Diameter:
- 145.5
- 5.73
- Flange Offset:
- 1.66
- 42.1
- Flange Shape: Triangle
- Hub Pilot Diameter:
- 3.6
- 91.4
- Spline Quantity: 33
- Wheel Pilot Diameter:
- 2.76
- 70.1
- Wheel Stud Quantity: 5
- Wheel Stud Size: M12 X 1.5
- Wheel Studs Included: Yes
- Heat treated and tempered; Forged Flange
- Each Hub Assembly is individually heat treated utilizing the latest digital machinery. Forged flange: Provides precise vehicle fit. Maintenance free unitized design- Pre-Set, Pre-Greased, and Pre-Sealed.
P311-5774ACD 295-13179 IAP Hub Assembly New
| Vehicle | BrakeABS | Position |
|---|---|---|
| 2003 Buick Regal | 4-Wheel ABS | Front |
- ABS Wheel Speed Sensor Cable Included: Yes
- Anti Lock Braking System: Yes
- Anti Lock Braking System Type: Sensor
- Bolt Circle Diameter:
- 115
- 4.53
- Brake Pilot Diameter:
- 2.78
- 70.6
- Connector Quantity: 1
- Driven Or Non-Driven Type Hub Assembly: Driven
- Flange Bolt Hole Quantity: 3
- Flange Bolt Size: M12 X 1.75
- Flange Bolts Included: No
- Flange Diameter:
- 145.5
- 5.73
- Flange Offset:
- 1.66
- 42.1
- Flange Shape: Triangle
- Hub Pilot Diameter:
- 3.6
- 91.4
- Spline Quantity: 33
- Wheel Pilot Diameter:
- 2.76
- 70.1
- Wheel Stud Quantity: 5
- Wheel Stud Size: M12 X 1.5
- Wheel Studs Included: Yes
- Heat treated and tempered; Forged Flange
- with Plastic Sensor Wire Clip; Excludes Heavy Duty Brakes (Axle Nut Torque 118 ft. lbs)
- Each Hub Assembly is individually heat treated utilizing the latest digital machinery. Forged flange: Provides precise vehicle fit. Maintenance free unitized design- Pre-Set, Pre-Greased, and Pre-Sealed.
P311-5774ACD 295-13179 IAP Hub Assembly New
| Vehicle | Position |
|---|---|
| 2002 Cadillac DeVille | Front |
- ABS Wheel Speed Sensor Cable Included: Yes
- Anti Lock Braking System: Yes
- Anti Lock Braking System Type: Sensor
- Bolt Circle Diameter:
- 115
- 4.53
- Brake Pilot Diameter:
- 2.78
- 70.6
- Connector Quantity: 1
- Driven Or Non-Driven Type Hub Assembly: Driven
- Flange Bolt Hole Quantity: 3
- Flange Bolt Size: M12 X 1.75
- Flange Bolts Included: No
- Flange Diameter:
- 145.5
- 5.73
- Flange Offset:
- 1.66
- 42.1
- Flange Shape: Triangle
- Hub Pilot Diameter:
- 3.6
- 91.4
- Spline Quantity: 33
- Wheel Pilot Diameter:
- 2.76
- 70.1
- Wheel Stud Quantity: 5
- Wheel Stud Size: M12 X 1.5
- Wheel Studs Included: Yes
- Heat treated and tempered; Forged Flange
- 2nd Design; Plastic Sensor Wire Clip; Axle Nut Torque 118 ft-lbs (Nm 160)
- Each Hub Assembly is individually heat treated utilizing the latest digital machinery. Forged flange: Provides precise vehicle fit. Maintenance free unitized design- Pre-Set, Pre-Greased, and Pre-Sealed.
P311-5774ACD 295-13179 IAP Hub Assembly New
| Vehicle | Drive Type | Position |
|---|---|---|
| 2001 Pontiac Montana | FWD | Front |
- ABS Wheel Speed Sensor Cable Included: Yes
- Anti Lock Braking System: Yes
- Anti Lock Braking System Type: Sensor
- Bolt Circle Diameter:
- 115
- 4.53
- Brake Pilot Diameter:
- 2.78
- 70.6
- Connector Quantity: 1
- Driven Or Non-Driven Type Hub Assembly: Driven
- Flange Bolt Hole Quantity: 3
- Flange Bolt Size: M12 X 1.75
- Flange Bolts Included: No
- Flange Diameter:
- 145.5
- 5.73
- Flange Offset:
- 1.66
- 42.1
- Flange Shape: Triangle
- Hub Pilot Diameter:
- 3.6
- 91.4
- Spline Quantity: 33
- Wheel Pilot Diameter:
- 2.76
- 70.1
- Wheel Stud Quantity: 5
- Wheel Stud Size: M12 X 1.5
- Wheel Studs Included: Yes
- Heat treated and tempered; Forged Flange
- Axle Nut Torque 155 ft-lbs (Nm 210)
- Each Hub Assembly is individually heat treated utilizing the latest digital machinery. Forged flange: Provides precise vehicle fit. Maintenance free unitized design- Pre-Set, Pre-Greased, and Pre-Sealed.
P311-5774ACD 295-13179 IAP Hub Assembly New
| Vehicle | BrakeABS | Position |
|---|---|---|
| 2003 Chevrolet Impala | 4-Wheel ABS | Front |
- ABS Wheel Speed Sensor Cable Included: Yes
- Anti Lock Braking System: Yes
- Anti Lock Braking System Type: Sensor
- Bolt Circle Diameter:
- 115
- 4.53
- Brake Pilot Diameter:
- 2.78
- 70.6
- Connector Quantity: 1
- Driven Or Non-Driven Type Hub Assembly: Driven
- Flange Bolt Hole Quantity: 3
- Flange Bolt Size: M12 X 1.75
- Flange Bolts Included: No
- Flange Diameter:
- 145.5
- 5.73
- Flange Offset:
- 1.66
- 42.1
- Flange Shape: Triangle
- Hub Pilot Diameter:
- 3.6
- 91.4
- Spline Quantity: 33
- Wheel Pilot Diameter:
- 2.76
- 70.1
- Wheel Stud Quantity: 5
- Wheel Stud Size: M12 X 1.5
- Wheel Studs Included: Yes
